DTF Patented Oil-Water Separator Filter
Feature
- Compact design, suitable for all kinds of compressed air piping of the filtered occasions.
- Easy to install, no additional power supply fault-free maintenance and other issues.
- Low cost, no need to replace the filter heart, simple maintenance.
Ordering Code
Rationale
Tornado filter uses patented active centrifuge structure, and other water and oil separator discharge, and then filtered through a metal filter impurities in the filter.
Precautions
- Products periphery must reserve space for easy maintenance.
- When the threaded pipe using a suitable locking the torque value.
- Products must be vertical and horizontal installation, and try to avoid vibration.
- Make sure when installing the IN or OUT direction, the opposite direction is prohibited to install.

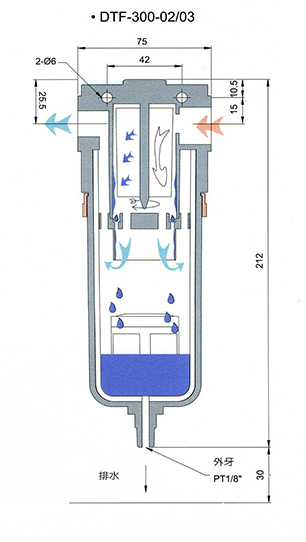

Dimensions
Installation
| Model | DTF - 300 | DTF - 400 | DTF - 600 | DTF - 800 |
|---|---|---|---|---|
| The maximum intake pressure | 8 kgf / cm 2 | 12 kgf / cm 2 | ||
Specification
| Model | DTF - 300 | DTF - 400 | DTF - 600 | DTF - 800 | |
|---|---|---|---|---|---|
| Fluid | Compressed air | ||||
| Body material | Engineering plastics | Aluminum | |||
| Accessories | － | A bracket, two screws | |||
| Working pressure ( I / min ) | 1 ~ 8 kgf / cm 2 | 1 ~ 10 kgf / cm 2 | |||
| Pipe size | 1 / 4 | 3 / 8 | 1 / 2 PT | 3 / 4 PT | 1 " PT |
| Maximum flow | 2000 | 3000 | 4000 | 6000 | 8000 |
| Filtration degree | － | 40 μm | |||
| Ambient temperature | -10 ° ~ 60 ° C | ||||
| Weight | 400 g | 2000 g | 2000 g | 2000 g | |
