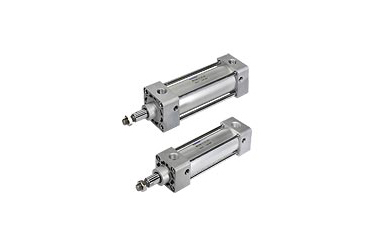

Standard Pneumatic Cylinder - MCQN
Feature
- Bores: φ1 1/2 "~ 4" ( inch ), the use of oil-alloys, special bearing bushing, the piston rod without to oil. Pneumatic cylinder tube with aluminum material, after alumina membrane treatment, more wear and corrosion resistance.
- Free to oil: use oil-alloy special bearing bush, the piston rod without To oil.
- High quality; durable good: pneumatic cylinder tube with aluminum material, after alumina membrane treatment, more wear and corrosion resistance.
- Fully interchangeable NFPA installation and configuration: mounting dimensions are based on ANSI ( NFPA ) T 3.6.7 R 2 - 1996 fluid power systems - quartet cylinder mounting dimensions.
Ordering Code
Detailed Specifications
| Bores ( mm ) | 40 , 50 , 63 , 80 , 100 |
| Bores ( inch ) | 1 - 1 / 2 ”~ 4 ” |
| Pipe diameter size | NPTF 1 / 2 ~ 3 / 8 |
| Fluid | Air |
| Maximum working pressure | 1 MPa |
| Minimum working pressure | 0.05 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Use speed range | 50 ~ 500 mm / sec |
| Sensor | RCA |
| Sensor holder | HV 1 , HV 2 , HV 3 |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCA |  |
RCA ( Reed ) 、RNA ( No contacts NPN ) 、RPA ( No contactsPNP ) , Applicable cylinder model : MCQA 、MCQV2 、MCQV 、MCMA 、MCMB 、MCKMB 、MCMBL 、MCMI 、MCCG 、MCCN 、MCKA 、MSB * 。 | ||
| Floating joints / MFC |  |
Eliminate interference due to link error between two shafts, produced. Accuracy can be processed with the appropriate member of the zoom. In line with small size, high tensile and compressive strength requirements. | ||
| Fisheye connector / PHS |  |
Yin thread link; genus Kan Rushi copper lining structure; butter with injection nozzle; handle the case of construction body material carbon steel; ball belongs to high carbon chromium bearing steel. | ||
