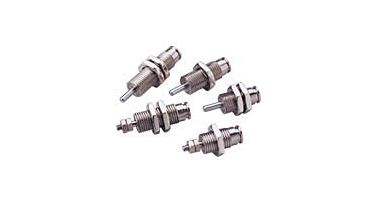

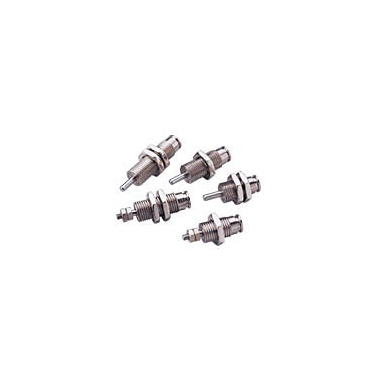

MCMJPB Pen-Type Pneumatic Cylinder
Feature
- Bores: φ 6, 10, 15 mm, model: MCMJPB ( Body-mounted type ), MCMJPS ( Embedded type ).
- The cylinder body can be directly buried or installed in the machine body on the plate, you can effectively save installation space, full series not attached magnetic.

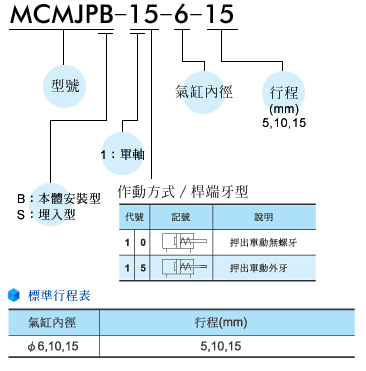

Ordering Code
Detailed Specifications
| Actuation mode | Single acting |
| Bores ( mm ) | 6 , 10 , 15 |
| Fluid | Air |
| Maximum working pressure | 0.7 MPa |
| Minimum working pressure | φ 6 ： 0.2 MPa φ 10 , 15 ： 0.15 MPa |
| Withstanding pressure | 1 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Use speed range | 50 ~ 500 mm / sec |
