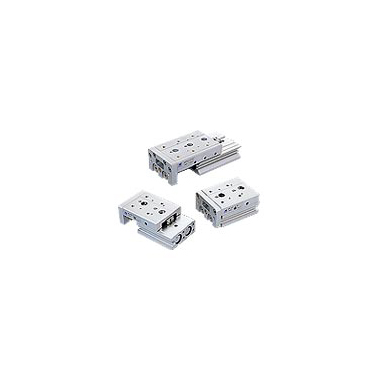

Slipway Pneumatic Cylinder
Feature
- Cylinder inner diameter: φ 6, 8, 12, 16, 20, 25 ( mm ), the compressed air into mechanical kinetic energy output, output double cylinder.
- The working platform and pneumatic cylinder compact integration for precision assembling.
- Design of the body buried sensors sense.
- Full series are attached magnetically.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 6 , 8 , 12 , 16 , 20 , 25 |
| Pipe diameter size | M 3 x 0.5 , M 5 x 0.8, Rc 1 / 8 |
| Fluid | Air |
| Working pressure range | 0.15 ~ 0.7 MPa |
| Withstanding pressure | 1 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Use speed range | 50 ~ 500 mm / sec |
| To oil | No need to oil |
| Buffer means | Rubber buffer ( standard ) Hydraulic shock absorber ( optional ) |
| Sensor | RCE , RCE1 |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC 。 |
||
| Sensor / RCE1 |  |
RCE1 ( Reed , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC 。 | ||
| Buffer / MAC / MAD |  |
MAC series - with automatic compensation function: mini, porous, long-stroke porous stationary. MAD series - with automatic compensation function: adjustable hole, porous adjustable. MAC automatic compensation series - bidirectional buffer. |
||
