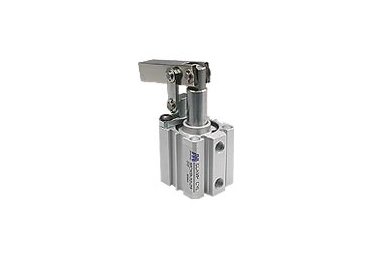

Lever Clamp Pneumatic Cylinder
Feature
- Bores : φ 32 mm 。
- Lever clamp pneumatic cylinder, commonly known fixture cylinder, the cylinder itself is lightweight, so space is limited places ( Such as CNC milling machining fixture ) is very suitable for processing.
- Cylinder four Jieke additional sensor, it can be more convenient control is generally used in automated machinery used or fixed workpiece clamping.
- All components by CNC lathe, so size unity, interchangeability good.
- The cylinder block are through hard anodized, wear resistance, and therefore increase the service life.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 32 |
| Pipe diameter size | Rc 1 / 8 |
| Fluid | Air |
| Working pressure range | 0.1 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | Cylinder: no need to oil Leverage site: to ( Apply lubricant ) |
| Sensor | RCB , RCE , RCE1 |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCB |  |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD 。 | ||
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC 。 |
||
| Sensor / RCE1 |  |
RCE1 ( Reed , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC 。 | ||
