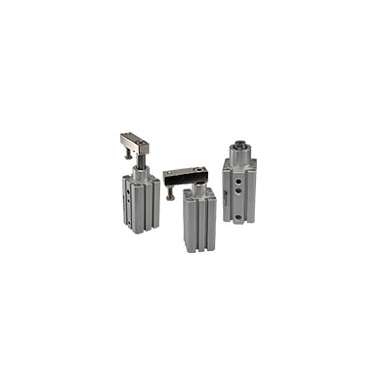

Corner Under Pressure Cylinder - MCKC
Feature
- Bores: φ 16, 20, 25, 32 ( mm ), has a plate type and is not attached to plate type, under Pneumatic corner cylinder is mainly used in space is small, and without any auxiliary plate, can easily holding and relax work
- Installation of this series products, all use spigot tooth design installation, without any fixed stand, to save the configuration space requirements.
- When extruded in the cylinder at a peripheral fitting groove reserve; so sensor when mounting and position adjustment are extremely simple.
- The freedom to choose a fixed direction sensor can be fixed on all sides.
- Full series are attached magnetic type.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 16 , 20 , 25 , 32 |
| Pipe diameter size | M 5 × 0.8 , Rc 1 / 8 |
| Fluid | Air |
| Corner angle | 90 ° ± 10 ° |
| Angle direction | Left ( L ) 、 Right ( R ) |
| Corner travel | 7.5 , 9.5 , 15 mm |
| Vertical stroke under pressure | 10 , 20 , 30 mm |
| Working pressure range | 0.1 ~ 0.9 MPa |
| Ambient temperature | －5 ~ ＋ 60 ℃ ( Do not freeze ) |
| Non-rotating accuracy | ± 1.3 °, ± 1.2 °, ± 1 ° ( When the plate is introduced ) |
| To oil | No need to oil |
| Use speed range | 50 ~ 200 mm / s |
| Sensor | RCE , RCE1 , RNE , RPE |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC 。 |
||
| Sensor / RCE1 |  |
RCE1 ( Reed , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC 。 | ||
