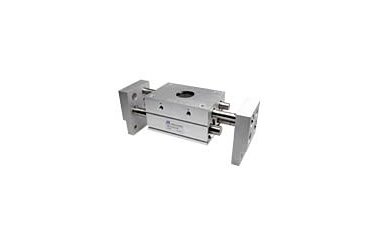

Wide Parallel Robot
Feature
- Bore: φ 10, 16, 20, 25, 32 ( mm ).
- Mining output double piston so lightweight mechanical claw to have a higher gripping force.
- Gripping fingers when moving, but also led to four axis gear, because the root of the axis than the second clamping stronger.
- All axis, end points, are taken from run-bearing branch, and has a dust-proof mechanism to prevent dust from entering.
- Full series can be installed submerged sensor.
- Full series are attached magnetically.

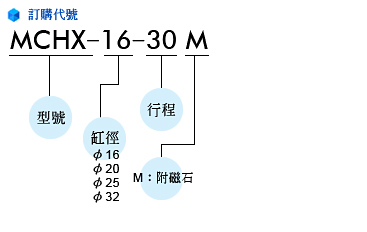

Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bore ( mm ) | 10 , 16 , 20 , 25 , 32 |
| Stroke ( mm ) | 20 ~ 200 |
| Fluid | Air |
| Working pressure range | 0.2 ~ 0.6 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Accuracy | ± 0.1 |
| To oil | No need to oil |
| Remark | ※ Gripping fingers sliding part to be regularly to lubricants. |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RK |  |
RK ( Reed ) 、 RKN ( No contacts NPN ) 、 RKP ( No contacts PNP ) , Applicable cylinder model : MCHX 、 MCHW 。 | ||
