Magnetic Type Rodless Cylinder - MCRPMS
Feature
- Bores: φ 20, φ 25 ( mm ).
- Save 50% space.
- Magnetically coupled design, built by an external magnetic ring on the piston and slide within reach radial magnetic transfer power and drive the load.
- Stainless steel cylinder tube design, weight light, rigid and strong.
- With the overall design of the actuator cylinder and double guide rod, the direct bearing load.
- Unilateral centralized air intake design, easy piping.

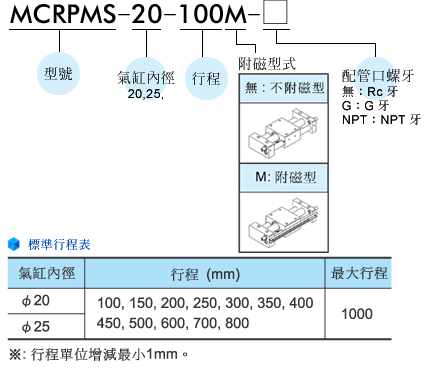

Ordering Code
Detailed Specifications
| Actuation mode |
Double action |
| Bores ( mm ) |
φ 20 , φ 25 |
| Pipe diameter size |
Rc 1 / 8 |
| Fluid |
Air |
| Working pressure range |
0.18 ~ 0.7 MPa |
| Withstanding pressure |
1 MPa |
| Ambient temperature |
＋ 5 ℃ ~ ＋ 60 ℃ |
| To oil lubrication |
No need to oil |
| Use speed range |
100 ~ 500 mm / sec |
| Magnet retention force |
φ 20 : 231 N , φ 25 : 363 N |
| Sensor |
RCD |
Related Accessories
| Product name |
|
Product description |
| Sensor / RCD |
 |
RCD ( Reed )、RND ( No contacts NPN ) 、 RPD ( No contacts PNP ) , Applicable cylinder model : MCRB 。 |
