Hydraulic Shock Absorbers S Series
S0806 / S0806-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M8* pitch 1.0 mm
- Stroke 6mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S0806 | M8 * Pitch 1.0 mm | 6 | 2.6 | 0.6~33 | 3 | 6,240 | 2.5~5.8 | -10~70 |
| S0806NC | M8 * Pitch 1.0 mm | 6 | 2.6 | 0.6~33 | 3 | 6,240 | 2.5~5.8 | -10~70 |
OPTIONAL ACCESSORIES
S1007 / S1007-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M10* pitch 1.0 mm
- Stroke 7mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S1007 | M10 * Pitch 1.0 mm | 7 | 5 | 1.1 ~ 63 | 3 | 12,000 | 3.7 ~ 7 | -10~70 |
| S1007 NC |
M10 * Pitch 1.0 mm | 7 | 5 | 1.1 ~ 63 | 3 | 12,000 | 2.5~5.8 | 3.7 ~ 7 |
OPTIONAL ACCESSORIES
S1210 / S1210-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M12* pitch 1.0 mm
- Stroke 10 mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S1210 | M12 * Pitch 1.0 mm | 10 | 10 | 2.2 ~ 80 | 3 | 24,000 | 4 ~ 9 | -10~70 |
| S1210 NC |
M12 * Pitch 1.0 mm | 10 | 10 | 2.2 ~ 80 | 3 | 24,000 | 4 ~ 9 | -10~70 |
OPTIONAL ACCESSORIES
S1412 / S1412-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M14* pitch 1.5 mm
- Stroke 12mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S1412 | M14 * Pitch 1.5 mm | 12 | 18 | 4 ~ 144 | 3 | 32,400 | 6.1 ~ 14 | -10~70 |
| S1412 NC |
M14 * Pitch 1.5 mm | 12 | 18 | 4 ~ 144 | 3 | 32,400 | 6.1 ~ 14 | -10~70 |
OPTIONAL ACCESSORIES

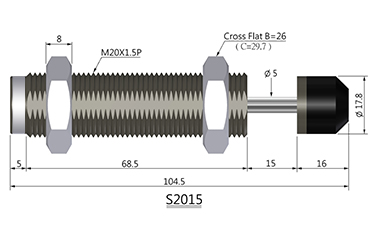

S2015 / S2015-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M20* pitch 1.5 mm
- Stroke 15mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S2015 | M20 * Pitch 1.5 mm | 15 | 46 | 10.2 ~ 368 | 3 | 55,200 | 9.8 ~ 20 | -10~70 |
| S2015 NC |
M20 * Pitch 1.5 mm | 15 | 46 | 10.2 ~ 368 | 3 | 55,200 | 9.8 ~ 20 | -10~70 |
OPTIONAL ACCESSORIES
S2525 / S2525-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M25* pitch 1.5 mm
- Stroke 25mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S2525 | M25 * Pitch 1.5 mm | 25 | 78 | 17 ~ 624 | 3 | 70,200 | 8.2 ~ 28 | -10~70 |
| S2525 NC |
M25 * Pitch 1.5 mm | 25 | 78 | 17 ~ 624 | 3 | 70,200 | 8.2 ~ 28 | -10~70 |
OPTIONAL ACCESSORIES
S2725 / S2725-NC
PRODUCT INFO
- Non-adjustable Shock Absorbers
- Each type has only one unique orifice arrangement
- M27* pitch 1.5 mm
- Stroke 25mm
- Surface treatment: Nitriding treatment
- NC no cap
TECA. DATA
| MODEL | THREAD | STROKE ( mm ) |
MAX. NM PER CYCLE ( NM ) |
MAX. EFFECTIVE WE ( KG ) |
MAX. IMPACT SPEED ( M/S ) |
MAX. NM PER HOUR ( NM ) |
RETURN FORCE ( N ) |
OPERATING TEMP. ( °C ) |
|---|---|---|---|---|---|---|---|---|
| S2725 | M27 * Pitch 1.5 mm | 25 | 90 | 20 ~ 720 | 3 | 81,000 | 8.2 ~ 28 | -10~70 |
| S2725 NC |
M27 * Pitch 1.5 mm | 25 | 90 | 20 ~ 720 | 3 | 81,000 | 8.2 ~ 28 | -10~70 |
