Barrier Type / Lift type / Push-Type - Double Guide Rod Pneumatic Cylinder
Feature
- Type: 03 - barrier type / sliding bearing cylinder, 13-- lift type / linear ball bearing, 53 - lift type / slide bearing, 23 - push-type / linear ball bearing, 63 - push-type / slide bearing, diameter: φ 20 ~ 80 ( mm ).
- Guides and connecting blocks made Kan Rushi configuration, when subjected to strong lateral load and play highly toughness characteristics.
- May be due to a variety of uses should make a choice, the guide rod end of the connecting block is classified into ~ columnar connection block ( Barrier type used ) and internet connection block ( With lift type ) two.
- When used according to the needs of precision in the design of guide rod bearing portion 「bearing」 two 「linear ball bearings」.
- And links to the outside of the cylinder block, preconfigured diverse design, easy to install and use.
- Full series are attached magnetically.

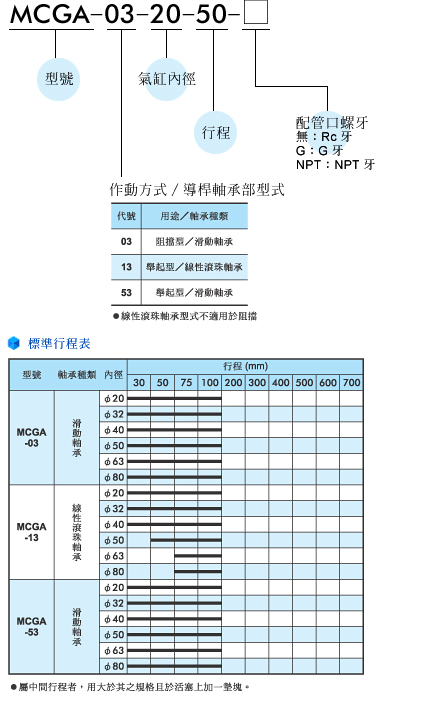

Ordering Code
Detailed Specifications
| Actuation mode |
Double action |
| Bores ( mm ) |
20 , 32 , 40 , 50 , 63 , 80 |
| Pipe diameter size |
Rc 1 / 8 ~ 3 / 8 |
| Fluid |
Air |
| Working pressure range |
0.1 ~ 1 MPa |
| Withstanding pressure |
1.5 MPa |
| Ambient temperature |
－5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Use speed range |
50 ~ 500 mm / sec |
| To oil |
No need to oil |
| Buffer means |
NBR bumper |
| Sensor |
RCB |
Related Accessories
| Product name |
|
Product description |
| Sensor / RCB |
 |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD 。 |
