Double Guide Rod Pneumatic Cylinder - MCGS
Feature
- Bores : φ 6 ~ 63 ( mm ) 。
- In order to pursue the most practical results, the company this space-saving design and easy installation of the product.
- Non-rotating accuracy of ± 0.1 ° ( φ 6, φ 10 ).
- By two side-mounted pipes.
- There are three main ways to install.
- Embedded type sensor is installed.
- Full series are attached magnetically.

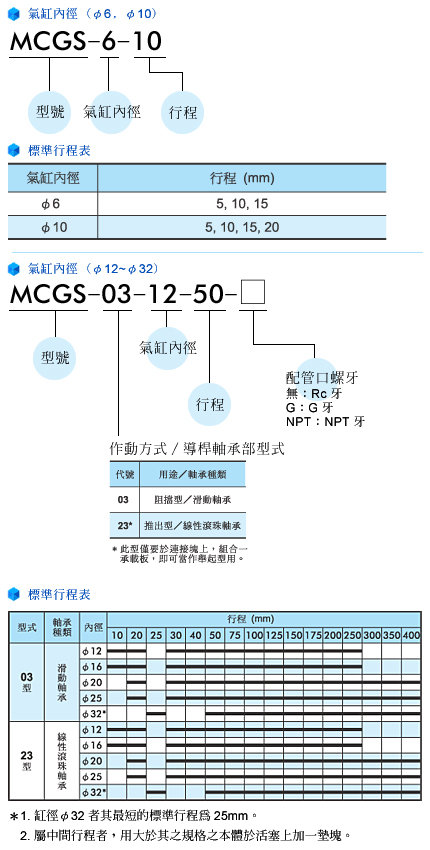

Ordering Code
Detailed Specifications
| Bores ( mm ) | 6 , 10 , 12 , 16 , 20 , 25 , 32 , 40 , 50 , 63 |
| Pipe diameter size | M 3 × 0.5 , M 5 × 0.8 , Rc 1 / 8 , Rc 1 / 4 |
| Fluid | Air |
| Working pressure range | φ 6 , φ 10 : 0.15 ~ 0.7 MPa φ 12 ~ φ 32 : 0.1 ~ 1 MPa |
| Withstanding pressure | φ 6 , φ 10 : 1 MPa φ 12 ~ φ32 : 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Use speed range | 50 ~ 400 mm / sec |
| To oil | No need to oil |
| Buffer means | NBR bumper |
| Sensor | φ 6 , φ 10 : RDF , RDFV φ 12 ~ φ 32 : RCE , RCE1 |
| Remark | ※ φ 6, φ 10 does not apply to block use. ※ φ 6, φ 10 stroke 10 mm or less, and can only install a single sensor. |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RDF |  |
RDF / RDFV (Reed), RNF / RNFV ( No contacts NPN ), RPF / RPFV (No contacts PNP), applicable model: MCFB, MCMJP, MCGS 。 | ||
| Sensor / RCE1 |  |
RCE1 ( Reed , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC 。 | ||
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC 。 |
||
