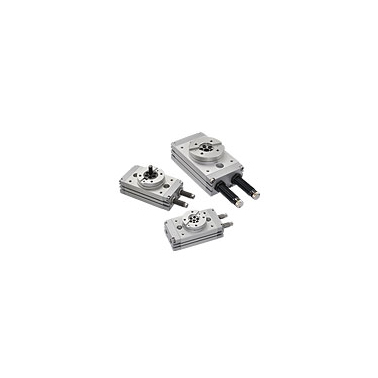

Rotary Pneumatic Cylinder - MCRB
Feature
- Cylinder inner diameter: φ 16, 20, 25, 32 ( mm ).
- At the same time, by actuating cylinder and a rack - rotary drive mechanism gears.
- Adjust the rotation angle can be greatly ( 0 ° ~ 190 ° ) and three types of body installation.
- The use of rail-groove mounting the sensor, can easily adjust the sensor position.
- Full series are attached magnetically.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 16 , 20 , 25 , 32 |
| Pipe diameter size | Rc 1 / 8 |
| Fluid | Air |
| Working pressure range | 0.1 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Buffer means | NBR cushion pad |
| Swing time adjustment range | 0.2 ~ 1.0 s / 90 ° |
| Allowable kinetic energy | Cushion pad : 0.007 J , 0.040 J, 0.081 J , 0.32 J Buffer : 0.039 J , 0.116 J , 0.294 J , 1.6 J |
| Sensor | RCD |
| Weight | 0.7 ~ 3.07 kg |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Buffer / MAC / MAD |  |
MAC series - with automatic compensation function: mini, porous, long-stroke porous stationary. MAD series - with automatic compensation function: adjustable hole, porous adjustable. MAC automatic compensation series - bidirectional buffer. |
||
| Sensor / RCD |  |
RCD ( Reed )、RND ( No contacts NPN ) 、 RPD ( No contacts PNP ) , Applicable cylinder model : MCRB 。 | ||
