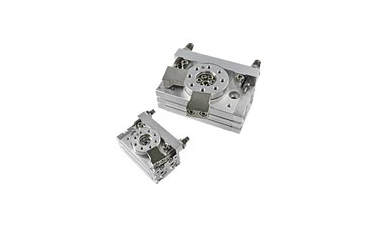

Rotary Pneumatic Cylinder - MCRQ - S
Feature
- Bores : φ 15 , φ 20 , φ 25 ( mm ) , Rotation angle : 90 ° , 180 ° 。
- Allow 4-10 times more kinetic energy: ( And internal buffer type comparison ).
- The total length is shortened: portrait of installation space is reduced, because there is no adjustment bolts or internal buffer protruding portion.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | φ 15 , 20 , 25 |
| Rotation angle | 90 °, 180 ° |
| Pipe diameter size | φ 15 ( M 5 × 0.8 ) , φ 20 , φ 25 ( Rc 1 / 8 ) |
| Fluid | Air ( No need to oil ) |
| Working pressure range | 0.2 ( ※ ) ~ 1 MPa |
| Ambient temperature | 0 ~ ＋ 60 ℃ ( Do not freeze ) |
| Allow impact pressure | φ 15 : ─ φ 20 , φ 25 : 1.5 MPa |
| Buffer means | Buffer |
| Angle adjustment range | Each swing ± 3 ° endpoint |
| Buffer | φ 15 ( PN0806 ) , φ 20 ( PN1008 ) , φ 25 ( PN1415 ) |
| Sensor | RT |
| Weight | 90 ° : 0.67 , 1.55 , 2.52 kg 180 ° : 0.64 , 1.48 , 2.41 kg |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RT |  |
RT ( Reed ) 、 RTN ( No contacts NPN ) 、 RTP ( No contacts PNP ) , Applicable cylinder model : MCRJ , MCRQ , MCRQ-S , MCHG2 , MCHU , MCHY 。 | ||
