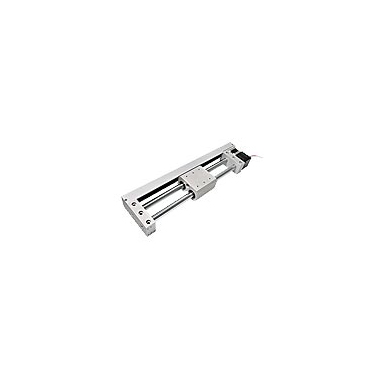

Smart Electric Cylinders
Feature
- Specification: 25, installed at the bottom to slide down a plane size, save space.
- Install the bottom to slide down a plane size, save space.
- Stepper motor to the minimum pitch timing belt drive, enhance displacement accuracy.
- In four linear ball bearing slide load, to maintain stable and smoothness.
- Servo type stepping motor built-in controller with program memory features.
- Three-phase stepper motors: Incremental 10000 P / R, contains 3 input, 2 out.
- A machine features: for program control mode, pulse mode and the communication control mode.

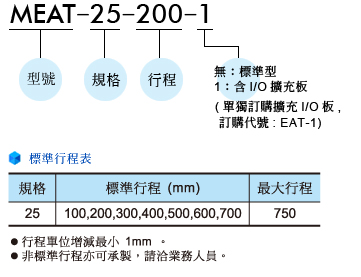

Ordering Code
Detailed Specifications
| Specification | 25 |
| Bearing | Linear ball bearings |
| Speed | 48 ~ 1000 mm / s |
| Horizontal load | 5 kg |
| Repeat accuracy | ± 0.1 mm |
| Ambient temperature | ＋ 5 ℃ ~ ＋ 40 ℃ |
| Remark | ※ Mounting plane four weeks to be reserved about five centimeters of space, in order to facilitate future maintenance replacement. |
