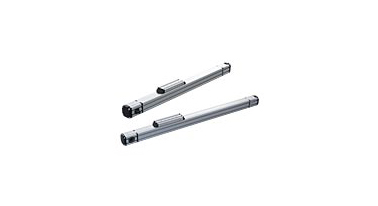

Electric Cylinders
Feature
- Dimensions: 42 x 42, 55 x 55, 80 x 80 mm.
- Belt drive with rail transport lines.
- Mining aluminum material structure.
- Use stainless steel strip sealed to prevent internal belt and rail line zhang dirty because dust damage.

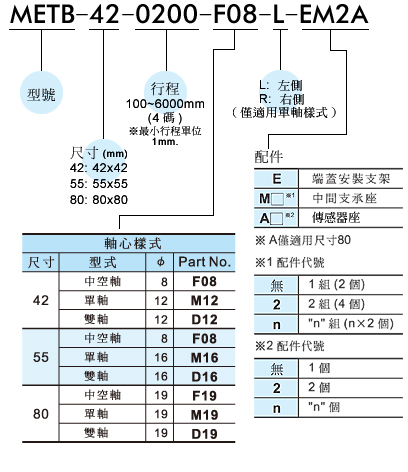

Ordering Code
Detailed Specifications
| Size | 42 : 42 x 42 , 55 : 55 x 55 , 80 : 80 x 80 mm |
| Maximum speed | 3 m / s |
| Maximum stroke | 6000 mm |
| Minimum stroke | 100 mm |
| Pulley rotation distance | 90 , 120 , 160 mm |
| Pulley teeth | 18 , 24 , 32 |
| Belt width | 12 , 16 , 25 mm |
| Maximum speed | 2000 , 1500 , 1150 g / min |
| Basic weight | 1.6 , 4.4 , 6 kg |
| Every increase of 100 mm weight | 0.25 , 0.37 , 0.9 kg |
| Maximum load | Fx : 460 , 820 , 1650 N Fy : 1560 , 1850 , 4500 N Fz : 1560, 1850 , 4500 N |
| Moment | Mx : 20 , 25 , 80 Nm My : 55 , 120 , 450 Nm Mz : 55 , 120 , 450 Nm |
| Aluminum extrusion MOI | lx : 11.8 , 36 , 183 cm 4 ly : 14.2 , 45 , 226 cm 4 |
| Repeat accuracy | ± 0.05 mm |
| Shaft to the maximum load | 200 , 300 , 300 N |
| Load torque | > 0.1 , > 0.5 , 0.9 Nm |
| Sensor | RCI , RNI , RPI |
