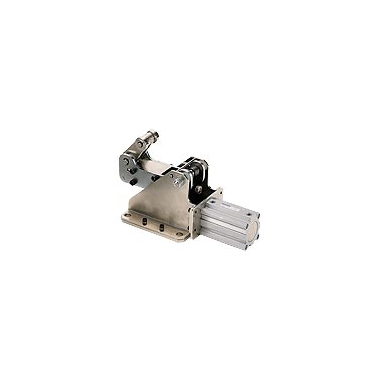

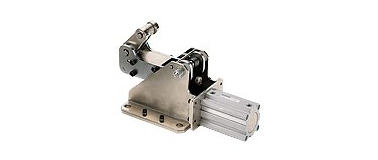

MSL * Series - MSLD
Feature
- Bores : φ 50 mm ， working pressure range : 0.2 ~ 1 MPa ， withstanding pressure : 1.5 MPa ， buffer means : NBR bumper ， magnetize 。

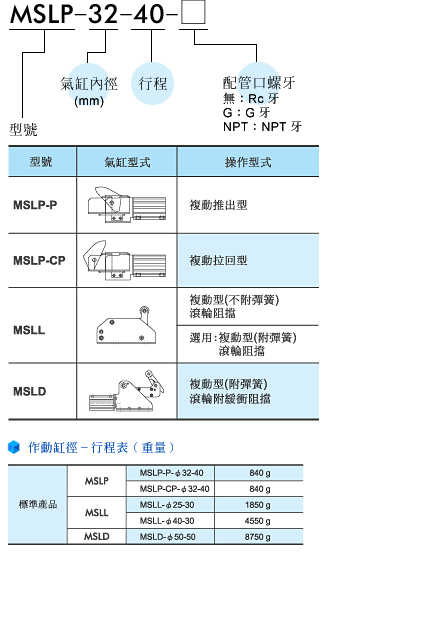

Ordering Code
Detailed Specifications
| Type | Double action attached spring - Wheel attachment blocking buffer |
| Actuator bore - stroke | φ 50 - 50 |
| Fluid | Air |
| Working pressure range | 0.2 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Buffer means | NBR bumper |
| Magnet | Magnetize |
| Sensor | RCB , RCE . RCE1 |
| Weight | 8750 g |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCB |  |
RCB ( Reed ) 、 RNB ( No contacts NPN ) 、 RPB ( No contacts PNP ) , Applicable cylinder model : MCJA , MCJQ2 , MCJT , MCJS , MCGA , MCGJ , MCDA , MCDB , MCRA , MCKB , MSB * , MSLD | ||
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC |
||
| Sensor / RCE1 |  |
RCE1 ( Reed , applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC | ||
