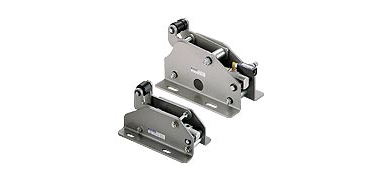

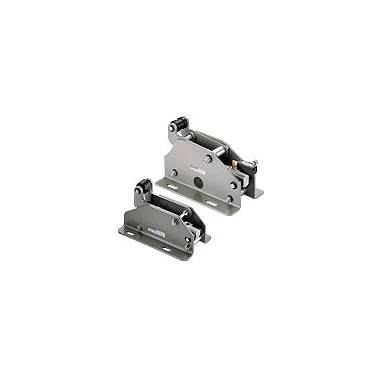

MSL * Series - MSLL
Feature
- Bores: φ 25, 40 ( mm ), working pressure range: 0.2 ~ 1 MPa, withstanding pressure: 1.5 MPa, buffer means: NBR bumper, φ 25 - not attached magnetic, φ 40 - magnetized.

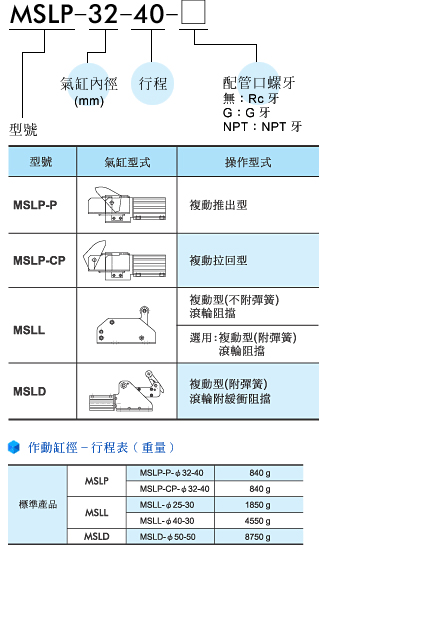

Ordering Code
Detailed Specifications
| Operation type | Double action ( Not attached spring ) - Wheel barrier Selection : Double action ( Attached spring ) - Wheel barrier |
| Actuator bore - stroke | φ 25 - 30 , φ 40 - 30 |
| Fluid | Air |
| Working pressure range | 0.2 ~ 1 MPa |
| Withstanding pressure | 1.5 MPa |
| Ambient temperature | －5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| To oil | No need to oil |
| Buffer means | NBR bumper |
| Magnet | φ 25 - Not attached magnetic , φ 40 - Magnetize |
| Sensor | RCA |
| Weight | 1850 g , 4550 g |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCA |  |
RCA ( Reed ) 、RNA ( No contacts NPN ) 、RPA ( No contactsPNP ) , Applicable cylinder model : MCQA 、MCQV2 、MCQV 、MCMA 、MCMB 、MCKMB 、MCMBL 、MCMI 、MCCG 、MCCN 、MCKA 、MSB * 。 | ||
