BVP Series Pneumatic Vibrator
Feature
- Can be used in material transportation, vibration screening, material shake vibration...
- The vibration intensity can be adjusted according to the air pressure and can be started and stopped immediately
- Fast speed, low noise, large vibration and safety

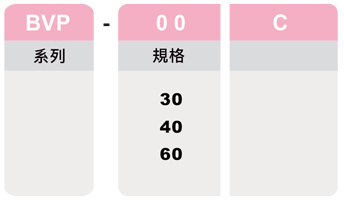

Ordering Code
Technical Parameters
| TYPE | F Requency (V.P.M) | Vibration Power (N) | Air consumption (l/min) |
Weight (Kg) |
||||
|---|---|---|---|---|---|---|---|---|
| 2MPa | 4MPa | 6MPa | 2MPa | 4MPa | 6MPa | |||
| BVP-30C | 1760 | 2300 | 2850 | 195 | 380 | 560 | 230 | 0.9 |
| BVP-40C | 1330 | 1670 | 1870 | 270 | 530 | 720 | 250 | 1.9 |
| BVP-60C | 1000 | 1220 | 1350 | 400 | 760 | 1000 | 270 | 4.5 |
Size
| TYPE | A | B | C | D | H | IN | OUT |
|---|---|---|---|---|---|---|---|
| BVP-30C | 128 | 90 | 68 | 18 | 12 | ¼ | ¼ |
| BVP-40C | 160 | 100 | 78 | 18 | 12 | ¼ | ¼ |
| BVP-60C | 208 | 140 | 105 | 20 | 16 | ¼ | ¼ |
