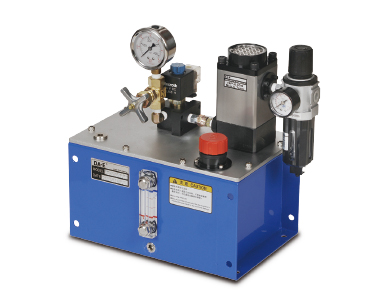

DP6300 Air-Driven Hydraulic Pumps
Feature
- A pressure detection features, with machine connection.
- The most suitable action is not frequent, takes a long time holding pressure of the hydraulic pressure can be maintained.
- Air outlet pressure of the pump and the pressure is proportional pneumatic output pressure varies according to the adjustment input.
- We need to follow with different output ( 24 ~ 480 kg / cm2 ), loop control system of pumping and different Flow of different Type.
- Hydraulic output of the set pressure and stop the action, save energy.
- If the output pressure drops automatically fill pressure, with constant packing features.
Ordering code
| 1 Series |
Air-Driven Hydraulic Pumps |
| 2 Pump type |
HP-6300 |
| 3. Pump output |
Comparison pump specifications table |
| 4. Control method |
T: plug control valve A: standard control valve |
| 5. Number of loops |
1: 1 Loop 2: 2 loop 3: 3 channels |
| 6 Coil voltage |
A1: AC110V, 50/60 Hz A2: AC220V, 50/60 Hz D2: DC24V |
Notice During Usage
The hydraulic oil in the fuel tank should be replaced every two years or when the oil deteriorates.
Always check that the fuel in the tank is adequate ( not below the "L" lower limit of the oil level gauge ).
If it is necessary to replenish the oil frequently, it is an external leak. Check the pipeline or external parts for abnormal oil leakage.
The air source of the pneumatic hydraulic pump unit should be free of moisture to keep it dry ( it is recommended to install an air dryer or water filter ) to prevent scale damage and damage other pump functions
Dimensions
Circuit diagram
