SO Series 7 Mpa Hydraulic Cylinders

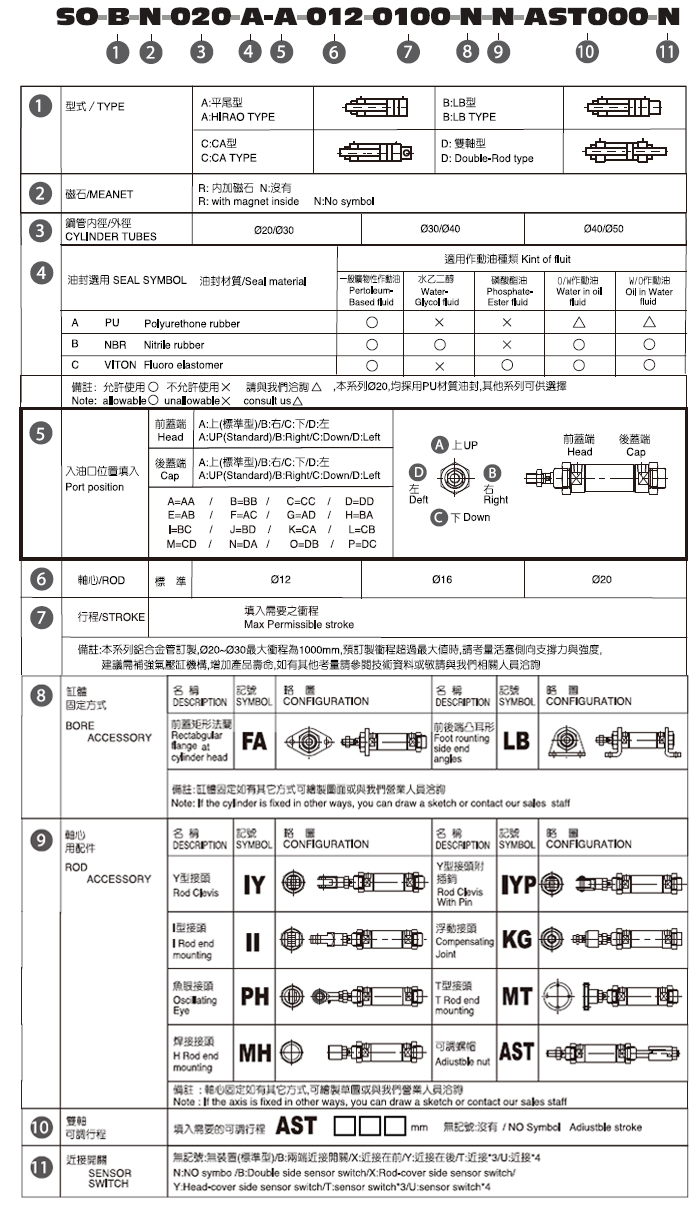

Ordering Code

Inside Structure and Parts List

Specification Table

SOB, SOD Series Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. The stroke exceed ( include ) 1500 mm, should redouble length ( PM ) of piston. ( Add twice length PM of size: P, Z, ZA,ZD ).
  4. AST : Adjustable stroke by customer assigment.



SO - FA Series Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. The stroke exceed ( include ) 1500 mm, should redouble length ( PM ) of piston. ( Add twice length PM of size: P, ZF, ZM ).



SO - FB Series Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. The stroke exceed ( include ) 1500 mm, should redouble length ( PM ) of piston. ( Add twice length PM of size: P, ZB, ZD ).



SO - LB Series Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. The stroke exceed ( include ) 1500 mm, should redouble length ( PM ) of piston. ( Add twice length PM of size: P, ZL ).



SO - A, CA Series Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. The stroke exceed ( include ) 1500 mm, should redouble length ( PM ) of piston. ( Add twice length PM of size: P, P1, ZS, ZC ).
