RO Series 14Mpa Hydraulic Cylinders

Ordering Code

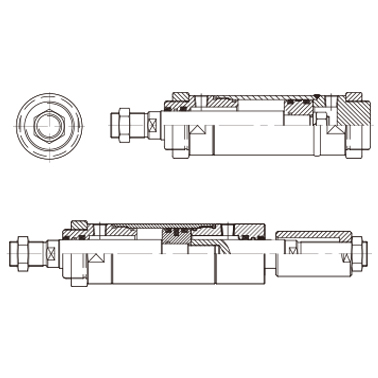

Inside Structure and Parts List

Specification Table

ROB, ROD Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. When this series of stroke exceeds ( includes ) 1500 mm, as see the property information for the length of the piston. Within 1499 mm see the ( PM ) length of piston.
  4. External diameter is round ( W, J ), when rod cover ( øJ ) and rod nut ( øW ) exceed M50.
  5. AST : Adjustable stroke by customer assigment.



RO - FA Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. When this series of stroke exceeds ( includes ) 1500 mm, as see the property information for the length of the piston. Within 1499 mm see the ( PM ) length of piston.
  4. External diameter is round ( W, J ), when rod cover ( øJ ) and rod nut ( øW ) exceed M50.



RO - FB Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. When this series of stroke exceeds ( includes ) 1500 mm, as see the property information for the length of the piston. Within 1499 mm see the ( PM ) length of piston.
  4. External diameter is round ( W, J ), when rod cover ( øJ ) and rod nut ( øW ) exceed M50.



RO - LB Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. When this series of stroke exceeds ( includes ) 1500 mm, as see the property information for the length of the piston. Within 1499 mm see the ( PM ) length of piston.
  4. External diameter is round ( W, J ), when rod cover ( øJ ) and rod nut ( øW ) exceed M50.



RO - TC Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. When this series of stroke exceeds ( includes ) 1500 mm, as see the property information for the length of the piston. Within 1499 mm see the ( PM ) length of piston.
  4. External diameter is round ( W, J ), when rod cover ( øJ ) and rod nut ( øW ) exceed M50.



RO - CA, CB Dimensions

Notes :

  1. The length and size of axis were not specide to constructed must be according to our company design's modify without prior notice.
  2. The series stroke exceed 500 mm( include ), axletree broaden be M18 x P1.5
  3. When this series of stroke exceeds ( includes ) 1500 mm, as see the property information for the length of the piston. Within 1499 mm see the ( PM ) length of piston.
  4. External diameter is round ( W, J ), when rod cover ( øJ ) and rod nut ( øW ) exceed M50.
