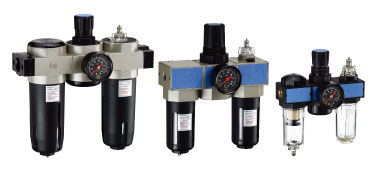

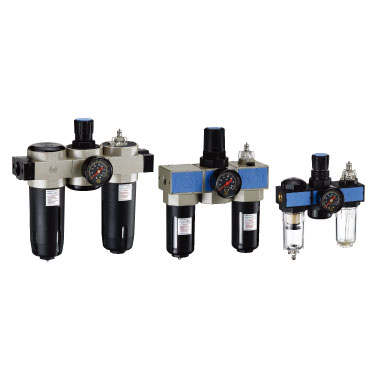

U Series Three-FRL
Feature
- Effectively and quickly rule out the water and particulates.
- 40μm and 5μm filter replacement simple and convenient.
- Simple and precise pressure adjustment.
- Do not turn off the gas supply and refueling stop line.
- Fine oil mist to ensure the effective protection and extended parts life.

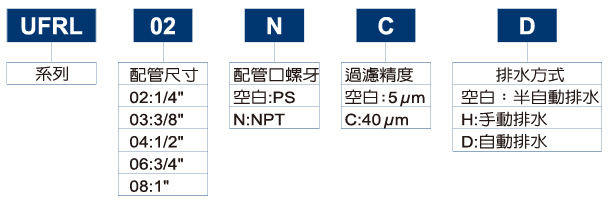

Ordering Code
Dimensions
Specification
| Model | UFRL - 02 | UFRL - 03 | UFRL - 04 | UFRL - 06 | UFRL - 08 |
|---|---|---|---|---|---|
| Pipe size | 1 / 4 " | 3 / 8 " | 1 / 2 " | 3 / 4 " | 1 " |
| Fluid | Compressed air | ||||
| Surge structure | Diaphragm | Piston | |||
| Body material | Engineering plastics | Aluminum die-casting | |||
| Cup material | Engineering plastics （ Standard equipment ） | ||||
| Filtering accuracy | 5 µm （ Standard equipment ） ， 40 µm （ Choose ） | ||||
| Operating pressure | 0.5 ~ 8.0 kgf / cm 2 | 0.5 ~ 9.9 kgf / cm 2 | |||
| The maximum intake pressure | 8.0 kgf / cm 2 | 12 kgf / cm 2 | |||
| Maximum flow （ I / min ） |
1850 | 2100 | 2600 | 7940 | 8200 |
| Ambient temperature | -10 ° C ~ 60 ° C | ||||
| Oil quality proposal | ISO - VG 32 | ||||
| Filter cup capacity | 35 cc | 105 cc | 210 cc | ||
| Oil cup capacity | 50 cc | 125 cc | 235 cc | ||
| Standard drainage | Semi-automatic （ less than 0.5 kgf / cm 2 ） | ||||
| Weight | 810 g | 1800 g | 2650 g | ||
| Accessories | A holder with a pressure gauge a plug four screws | ||||
