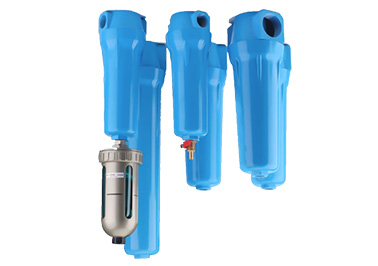

RAE Precision Filter
Feature
- Advanced dust removal : mostly used in the rear cooler of air compressors or before refrigeration dryers and other filters to protect the entire system
- Efficient water removal : multiple devices are installed in front of tools, machinery, motors, cylinders and other equipment and S-class ultra-high-efficiency oil removal filters
- Efficient oil removal : used upstream of adsorption dryers or downstream of refrigeration dryers to ensure that the air used in the system is completely oil-free.
Ordering Code
Dimensions
Function
Installation Example
Specification
| TYPE |
RAE-015 |
RAE-024 |
RAE-035 |
RAE-060 |
RAE-090 |
| Size |
23.5 X 8.5 ( cm ) |
29.5 X 10.5 ( cm ) |
29.5 X 10.5 ( cm ) |
45 X 11 ( cm ) |
62 X 13.5 ( cm ) |
| Air pressure handling capacity |
1.5 m3 / min |
2.4 m3 / min |
3.5 m3 / min |
6.0 m3 / min |
9.0 m3 / min |
| Work pressure |
1.0 Mpa |
1.0 Mpa |
1.0 Mpa |
1.0 Mpa |
1.0 Mpa |
| Import and export caliber |
¾ |
1 ½ |
1 ½ |
1 ½ |
2 |
| Applicable air compressor power |
Below 7.5 kWh |
Below 15 kWh |
Below 22 kWh |
Below 37 kWh |
Below 55 kWh |
| Weight |
0.6 kg |
1.1 kg |
1.1 kg |
1.5 kg |
3.0 kg |
