POSU Steel Rapid-Connector

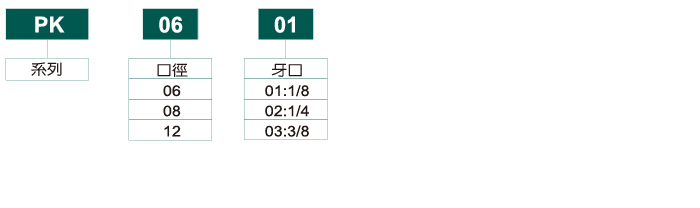

Ordering Code

Specification

  • PK Series - direct head

    • Purchase number Tube teeth ( D ) Tube diameter
    （ m / m ）    		 Tube diameter
    （ m / m ）    		 Dimensions ( m / m )
    B L E F W 1 W 2
    PK - 06 - 01 PK - 1 / 8 4 6 10.3 30.2 13 12 3.3 4.2
    PK - 08 - 01 PK - 1 / 8 5 ~ 6 8 10.4 30.4 13 14 5.3 5.3
    PK - 06 - 02 PK - 1 / 4 4 6 12.8 34.1 17 12 3.3 5.3
    PK - 08 - 02 PK - 1 / 4 5 ~ 6 8 13.1 33.5 17 12 5.3 5.7
    PK - 08 - 03 PK - 3 / 8 5 ~ 6 8 14.4 35.3 19 14 5.3 8.2
    PK - 12 - 03 PK - 3 / 8 8 ~ 9 12 13.7 38.4 19 19 7.9 7.8

  • GPK Series - bending joints

    • Purchase number Tube teeth ( D ) Tube diameter
    （ m / m ）    		 Tube diameter
    （ m / m ）    		 Dimensions ( m / m )
    B C F H H 1 L L 1 W 1 W 2
    GPK - 06 - 01 PK - 1 / 8 4 6 10.6 13 12 22.4 16.4 26.3 20.3 3.3 4.0
    GPK - 08 - 01 PK - 1 / 8 5 ~ 6 8 10.6 17 14 24.5 17.5 28.3 21.3 5.3 5.3
    GPK - 06 - 02 PK - 1 / 4 4 6 13.1 17 12 25.0 19.0 29.8 22.3 3.3 5.0
    GPK - 08 - 02 PK - 1 / 4 5 ~ 6 8 13.1 17 14 27.4 20.4 29.8 22.3 5.3 5.3
    GPK - 08 - 03 PK - 3 / 8 5 ~ 6 8 14.2 19 14 28.5 21.0 33.5 24.0 5.3 8.1
    GPK - 12 - 03 PK - 3 / 8 8 ~ 9 12 13.7 19 19 32.8 23.8 36.8 27.3 7.9 7.9

  • FPK Series - Tee T connector

    • Purchase number Tube diameter
    （ m / m ）    		 Tube diameter
    （ m / m ）    		 Dimensions ( m / m )
    C D F H H 1 H 2 L L 1 W 1 W 2 W 3
    FPK - 06 4 6 15 4.3 12 30.6 6.8 6.0 49.5 12 3.3 3.3 3.3
    FPK - 08 5 ~ 6 8 18 4.3 14 31.0 8.0 6.0 48.2 12 5.3 5.3 5.3
    FPK - 12 8 ~ 9 12 22 4.3 19 38.0 11 7.1 56.5 13 7.9 7.9 7.9

  • MPK Series - Nuts

    • Purchase number Tube diameter
    （ m / m ）
    MPK - 06 6
    MPK - 08 8
    MPK - 12 12

  • TPK Series - Barbed fittings

    • Purchase number Tube diameter
    （ m / m ）
    TPK - 06 2 ~ 2.5
    TPK - 08 4

  • YPK Series - Barbed fittings

    • Purchase number Tube diameter
    （ m / m ）
    YPK - 06 2 ~ 2.5
    YPK - 08 4
