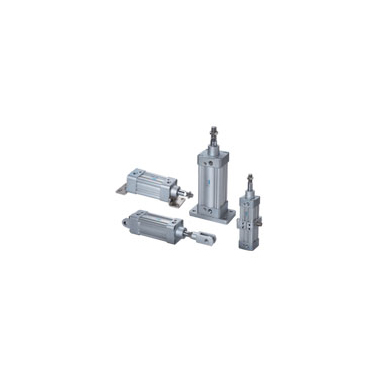

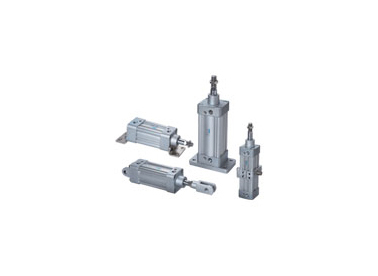

ISO - VDMA Standard PROFILE Pneumatic Cylinder ( No Tie Rod Type )
Feature
- Bores: φ 32 ~ 100 ( mm ).
- Free to oil: use oil-alloy special bearing bush, the piston rod without to oil.
- High-quality, durable good: pneumatic cylinder tube with aluminum material, after alumina membrane treatment, more wear and corrosion resistance.
- ISO standard: according to international standards ISO - VDMA standard production, is no tie rod type, most parts can be interchangeable.
- Embedded sensor: cylinder tube are surrounded by a buried sensor fixed groove design, to follow actual needs change sensor installation location.

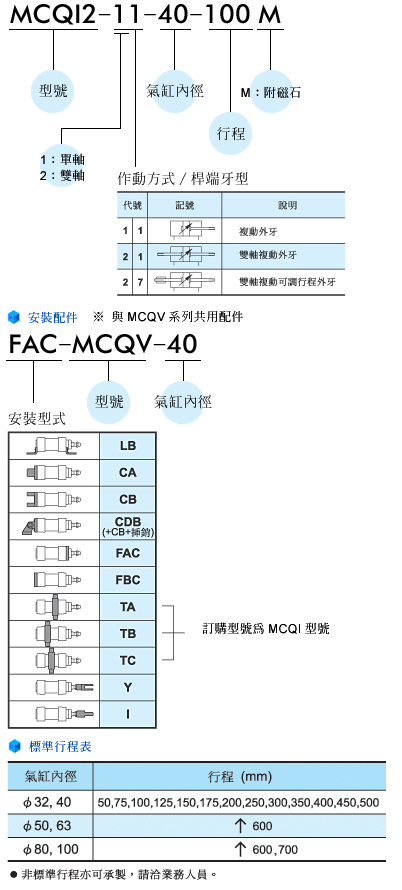

Ordering Code
Detailed Specifications
| Bores ( mm ) |
32 , 40 , 50 , 63 , 80 , 100 |
| Fluid |
Air |
| Working pressure range |
0.05 ~ 1 MPa |
| Withstanding pressure |
1.5 MPa |
| Ambient temperature |
－5 ℃ ~ ＋ 60 ℃ ( Do not freeze ) |
| Use speed range |
50 ~ 500 mm / sec |
| Sensor |
RCI |
Related Accessories
| Product name |
|
Product description |
| Sensor / RCI |
 |
RCI (Reed), RCI - N (Reed NPN), RCI - P (Reed PNP), RNI ( No contacts NPN ), RPI (No contacts PNP), Applicable cylinder model: MCQI 2, MCBQI 2, MCJI, MGTX, MGTU , METB, is buried sensor. |
| Floating joints / MFC |
 |
Eliminate interference due to link error between two shafts, produced. Accuracy can be processed with the appropriate member of the zoom. In line with small size, high tensile and compressive strength requirements. |
| Fisheye connector / PHS |
 |
Yin thread link; genus Kan Rushi copper lining structure; butter with injection nozzle; handle the case of construction body material carbon steel; ball belongs to high carbon chromium bearing steel. |
