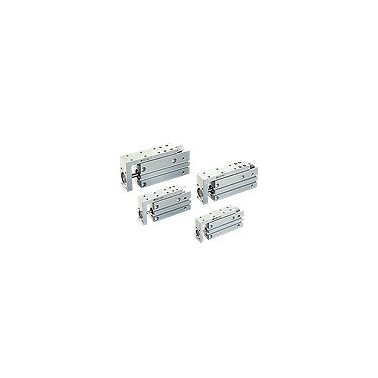

Compact Slide
Feature
- Cylinder inner diameter: φ 6, 10, 16, 20 ( mm ).
- Suitable for short pitch fixed platform attached to the cylinder.
- Unlimited use of rail tracks, with forward resistance, excellent rigidity, stop rotating accuracy of the cylinder attached platform.
- 4 direction by mounting a third direction and mining piping, space applications more flexible.
- Full series are attached magnetically.
Ordering Code
Detailed Specifications
| Actuation mode | Double action |
| Bores ( mm ) | 6 , 10 , 16 , 20 |
| Rail width ( mm ) | 5 , 7 , 9 , 12 |
| Pipe diameter size | M 5 × 0.8 |
| Fluid | Air |
| Working pressure range | φ 6 : 0.12 ~ 0.7 MPa φ 10 , 16 : 0.06 ~ 0.7 MPa φ 20 : 0.05 ~ 0.7 MPa |
| Withstanding pressure | 1.05 MPa |
| Ambient temperature | －10 ~ ＋ 60℃ ( Do not freeze ) |
| Piston speed | 50 ~ 500 mm / sec |
| Allowable kinetic energy | 0.125 ~ 1.0 kgf‧cm |
| To oil | No need to oil |
| Buffer means | Both sides of the rubber buffer |
| Stroke length tolerance | + 1.0 0 |
| Sensor | RCE , RCE1 |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RCE |  |
RCE ( Reed ) 、 RNE ( No contacts NPN ) 、 RPE ( No contacts PNP ) , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * RCE : Use voltage range : 5 ~ 220 V DC / AC , RNE , RPE : Use voltage range : 5 ~ 30 V DC 。 |
||
| Sensor / RCE1 |  |
RCE1 ( Reed , Applicable cylinder model ： MCJA , MCJQ , MCJT , MCJS , MCFA , MCGB , MCGD , MCGJ , MCG3 , MCDA , MCSH , MCSS , MCRA , MCKB , MCHA , MCHB , MSB * , MSL * , RCE1 : Use voltage range : 5 ~ 120 V DC / AC 。 | ||
