Mini Pneumatic Cylinder Angle Of Rotation
Feature
- Bores : φ 6 , 8 ( mm ) 。
- By simultaneously actuating cylinder and a rack - rotary drive mechanism gears.
- Adjust the rotation angle can be greatly ( 0 ° ~ 190 ° ) and three types of body installation.
- The use of rail-groove mounting the sensor, can easily adjust the sensor position.
- Full series are attached magnetically.

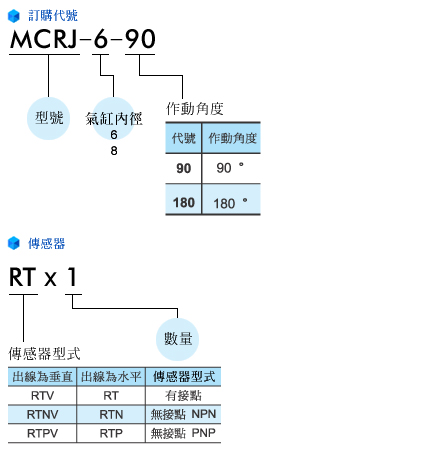

Ordering Code
Detailed Specifications
| Bores ( mm ) | φ 6 , φ 8 |
| Rotation angle | 90 ° , 180 ° |
| Pipe diameter size | M 3 × 0.5 |
| Fluid | Air ( No need to oil ) |
| Working pressure range | 0.15 ~ 0.7 MPa |
| Ambient temperature | 0 ~ ＋ 60 ℃ |
| Angle adjustment range | ± 5 ° |
| Weight | 90° : φ 6 / 48 g , φ 8 / 71 g 180 ° : φ 6 / 54 g , φ 8 / 82 g |
Related Accessories
| Product name | Product description | |||
|---|---|---|---|---|
| Sensor / RT |  |
RT ( Reed ) 、 RTN ( No contacts NPN ) 、 RTP ( No contacts PNP ) , Applicable cylinder model : MCRJ , MCRQ , MCRQ-S , MCHG2 , MCHU , MCHY 。 | ||
